Changzhou Chenye Warp Knitting Machinery Co., Ltd.
 |
| Place of Origin: | CHINA |
| Brand Name: | chenye |
| Certification: | SGS |
| Model Number: | SRCA |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | USD25000-40000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 45Working Days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10SETS/MONTH |
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Automatic Grade: | Automatic | Weight: | Different Weight |
| Product Name: | Raschel Warp Knitting Machinery | Knot Type: | Knotless |
| Production Capacity: | 300-400 Kg/day | ||
| High Light: | raschel knitting machine,net making machine |
||

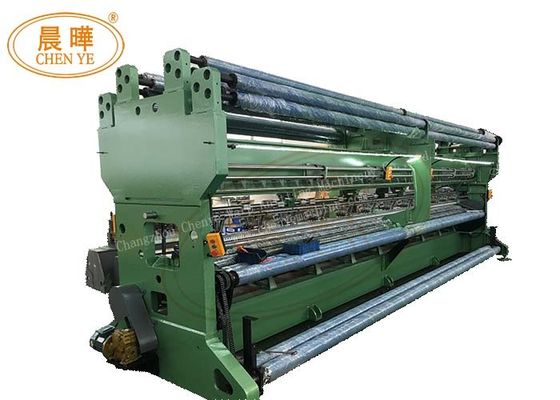

High Speed Single Needle Bar Raschel Machine For HDPE Safety Net Machine
Safety net: engineering and construction nets, protecting net , net of fire resistance, etc
Usage:This machine is used to produce knotless fishing net,protecting net , purse net,garment net and shading net. Features:The machine is equipped with open cam gearing and 3-rollers positive yarn left-off system.
Needle Type
|
Latch Needle
|
Gauge
|
E6, E7, E8, E9, E12, E14
|
Bar Number
|
2~6
|
Nominal Width
|
135" 150" 180" 220" 260"340”
|
Take-up Manner
|
2 rollers with friction drive,center shaft drive; 2 rollers with friction drive,separately-standing, center shaft drive, separately-standing |
Main type
|
Machine size
|
speed(rpm)
|
Main motor power
|
Inching motor power
|
SRCA-135
|
4300*1700*2300
|
200-530
|
3kw
|
0.37kw
|
SRCA-150
|
4900*1700*2300
|
200-530
|
3kw
|
0.37kw
|
SRCA-180
|
6100*1700*2400
|
200-530
|
5.5kw
|
0.75kw
|
SRCA-220
|
7300*1700*2400
|
200-500
|
5.5kw
|
1.5kw
|
SRCA-260
|
8200*1700*2400
|
200-480
|
7.5kw
|
1.5kw
|
SRCA-340
|
8100*1700*2400
|
200-450
|
11kw
|
1.5kw
|
Chenye upholds the service principle of maximizing the interests of customers and wholeheartedly provides the best service for every customer.
We welcome your 24-hour consultation at any time.
Actively answer any questions for you. It is our duty to ensure the good operation of the machines you buy.
We promise lifelong quality assurance.
Our engineers will debug the machines on your doorstep to ensure the best condition of each machine.
At the same time, we are willing to provide you with guidance on the use of the machines so that your employees can operate the machines quickly and skillfully.
