Changzhou Chenye Warp Knitting Machinery Co., Ltd.
 |
| Place of Origin: | China |
| Brand Name: | Chenye |
| Certification: | SGS |
| Model Number: | SRCA |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD20000-40000 |
| Packaging Details: | The normal package is wooden box |
| Delivery Time: | 45 WORKING DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 SETS PER MONTH |
| Features: | Open Cam Gearing And 3-roIlers Positive Yarn Let-off System | Application: | Knotless Fishing Net, Protecting Net, Purse Net And Shading Net |
|---|---|---|---|
| Gauge: | E6/E7/E8/E9/E12/E14 | Working Width: | Working Width |
| Number Of Bars: | 2-6 | Name: | Commercial Knitting Machine |
| High Light: | net making machine,raschel net machine |
||

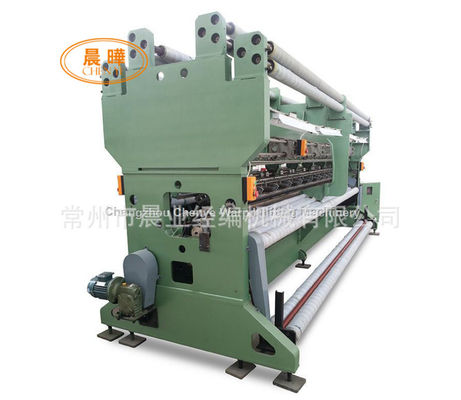

High speed gsingle needle bar raschel machine for sport net,protecting net
We are manufacturer specialised in warp knitting machinery with strong R&D background.
We have our own sales and service team to expand our overseas trade.Our focus is also on technical and product development.
Our facility covers 14000 sq.m with more than60 employees.
We have our own engineers with strong knowledge of knitting machinery.
We have our own engineers with strong knowledge of knitting machinery.
We are able to introduce advanced technology into warp knitting industries by having technical co-operation with University .
We are member of Chinese Fishing Boat&Gear Association who is truly in technology research and development on manufactures
to ensure product quality,understanfing customer requireements and able to provide solutions on their problems.
The buiness philosophy is to optimize product performance and quality aiming at develoing manufacturers who are able to build
new type of warp knitting machine.
Our company has developed a Raschel machine with excellent performance,
economical and practical characteristics.Our products have been sold to India,economical and practical characteristics.
Oue products have been sold to India ,Vietnam,Indonesia,Bangladesh .Egypt and etc.achieving high customer satisfaction .
We want to continue innovating and develop new products to satisfy different user needs .
We want to enlarge our markert share with advanced technology ,reliable quality and good customer serivice.
We have set-up two subsidiaries as below.
FEATURES
1.Model :single needle bar warp knitting machine
2. Needle type:Latch needle
3. Gauge:E6/E7/E8/E9/E12/E14 (needles/inch)
4. Working width: 135~340"
5. Number of guide bars: 2-6bars
6. Let -off mechanism: open cam gearing and 3-roller positive yarn let-off system.
7. Take-up: 2 rollers with friction drive, center shaft drive, 2 rollers with friction drive, separately-standing, center shat drive, separately-standing.
8. Max. speed of main shaft: working speed 200-530rpm
9. Drive motor: main drive motor is 3-11kw, slow speed motor is 0.37-1.5kw
10.Production Capacity: about 500kg-8000kg/24hrs
11.Weight :about 4500-14000/set
12.Packing:The machine is packed by port container, spare parts and control box are packed in cartons
Machine Advantage :
1. Simple structure, Operate Conveniently.
2. With automatic stop system
3. Cam drive ,stable performance
4. The main motor adopts conversion control , stepless Speed Regulating
5. Standard Fittings .
SPECIFICATION
| Main type | Machine size | Weight(kg) | Main motor power | Inching motor power | Speed(rpm) |
| SRCA-135 | 4300*1700*2300 | 4500 | 3kw | 0.37kw | 200-530 |
| SRCA-150 | 4900*1700*2300 | 5000 | 4kw | 0.37kw | 200-530 |
| SRCA-180 | 6100*1700*2400 | 7500 | 5.5kw | 0.75kw | 200-530 |
| SRCA-220 | 7300*1700*2400 | 9000 | 5.5kw | 1.5kw | 200-500 |
| SRCA-260 | 8200*1700*2400 | 11000 | 7.5kw | 1.5kw | 200-480 |
| SRCA-340 | 10300*1700*2400 | 14000 | 11kw | 1.5kw | 200-450 |
