Changzhou Chenye Warp Knitting Machinery Co., Ltd.
 |
| Place of Origin: | CHINA |
| Brand Name: | chenye |
| Certification: | SGS |
| Model Number: | SRCA |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | USD25000-40000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 45Working Days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 10SETS/MONTH |
| Power(W): | 9kw | Dimension(L*W*H): | Different Size |
|---|---|---|---|
| Weight: | Different Weight | Warranty: | 1 Year |
| Condition: | New | Automatic Grade: | Automatic |
| Production Capacity: | 300-400 Kg/day | Voltage: | 7500 |
| High Light: | raschel knitting machine,net making machine |
||
High quality green construction building safety net machine with new hdpe

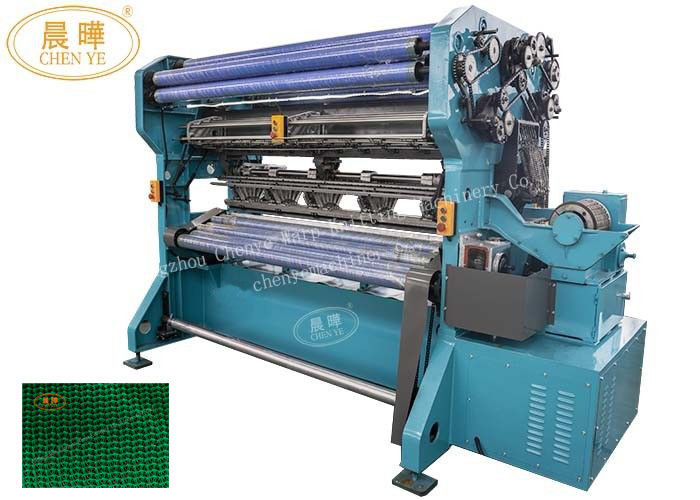

SRCA High Speed Single Needle Bar Raschel Machine APPLICATION:This machine is used to produce knotless fishing net, protecting net ,purse net,agrment net and shading bet. FEATURES:The machine is equipped with open camgearing and 3-rollers positive yarn left-off system.
Needle Type
|
Latch Needle
|
Gauge
|
E6, E7, E8, E9, E12, E14
|
Bar Number
|
2~6
|
Nominal Width
|
135" 150" 180" 220" 260"340”
|
Take-up Manner
|
2 rollers with friction drive,center shaft drive; 2 rollers with friction drive,separately-standing, center shaft drive, separately-standing |
Main type
|
Machine size
|
speed(rpm)
|
Main motor power
|
Inching motor power
|
SRCA-135
|
4300*1700*2300
|
200-530
|
3kw
|
0.37kw
|
SRCA-150
|
4900*1700*2300
|
200-530
|
3kw
|
0.37kw
|
SRCA-180
|
6100*1700*2400
|
200-530
|
5.5kw
|
0.75kw
|
SRCA-220
|
7300*1700*2400
|
200-500
|
5.5kw
|
1.5kw
|
SRCA-260
|
8200*1700*2400
|
200-480
|
7.5kw
|
1.5kw
|
SRCA-340
|
8100*1700*2400
|
200-450
|
11kw
|
1.5kw
|
Safety net: engineering and construction nets, protecting net , net of fire resistance, etc
Packaging Details:The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request. Port :shanghai
